How do I setup my Ruijie M32 / M16 Mesh Router?

How do I setup my Ruijie M32 / M16 Mesh Router?

First ensure your Ruijie Mesh router is factory reset.  Do this by putting a small pin into the 'Reset' hole in the back just below the power.  Hold the pin down for 10 seconds, until you start seeing the light on top flashing.

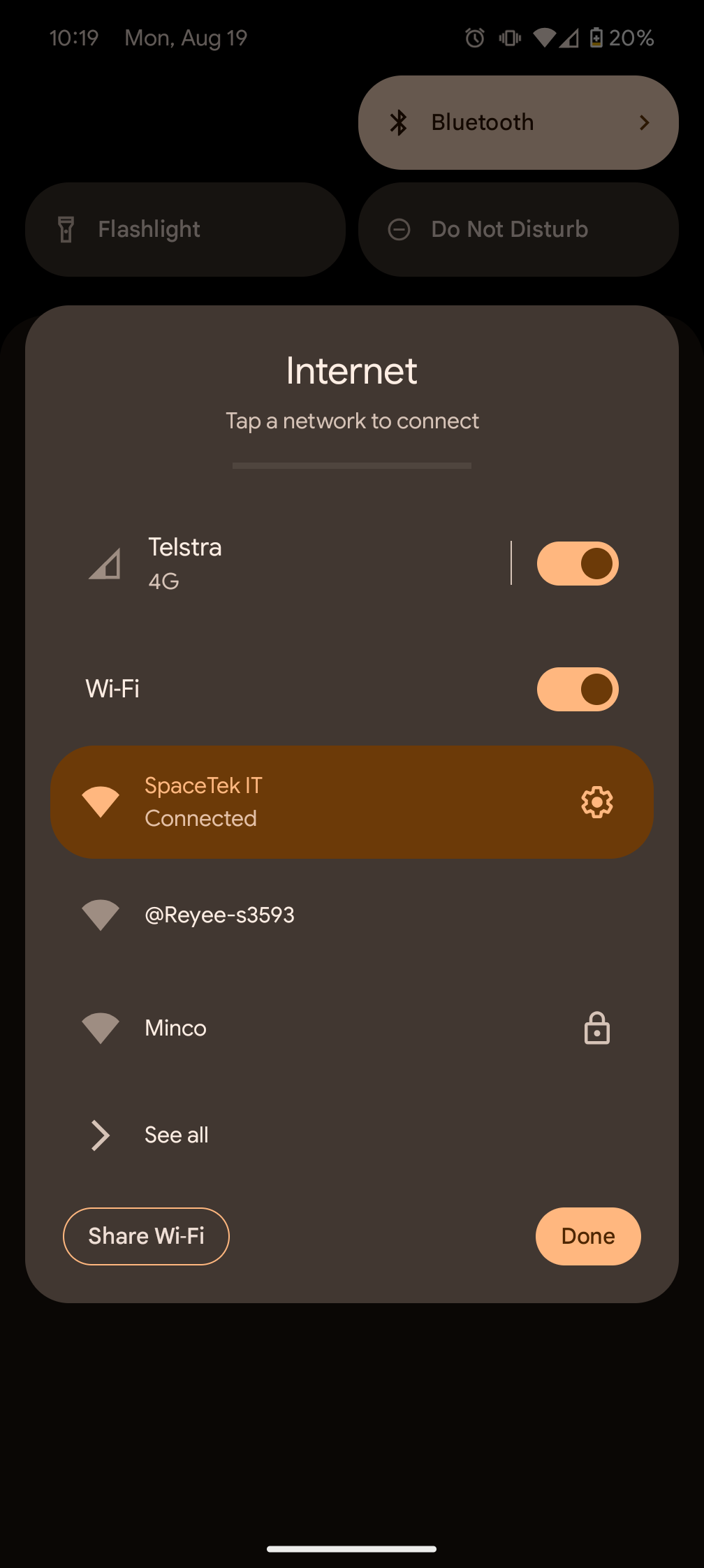

After a couple of minutes, open your phone's wifi and look for a network called @Reyee-XXXXX or @Ruijie-XXXXX (with the X being placeholders for your device's serial).  As per below:

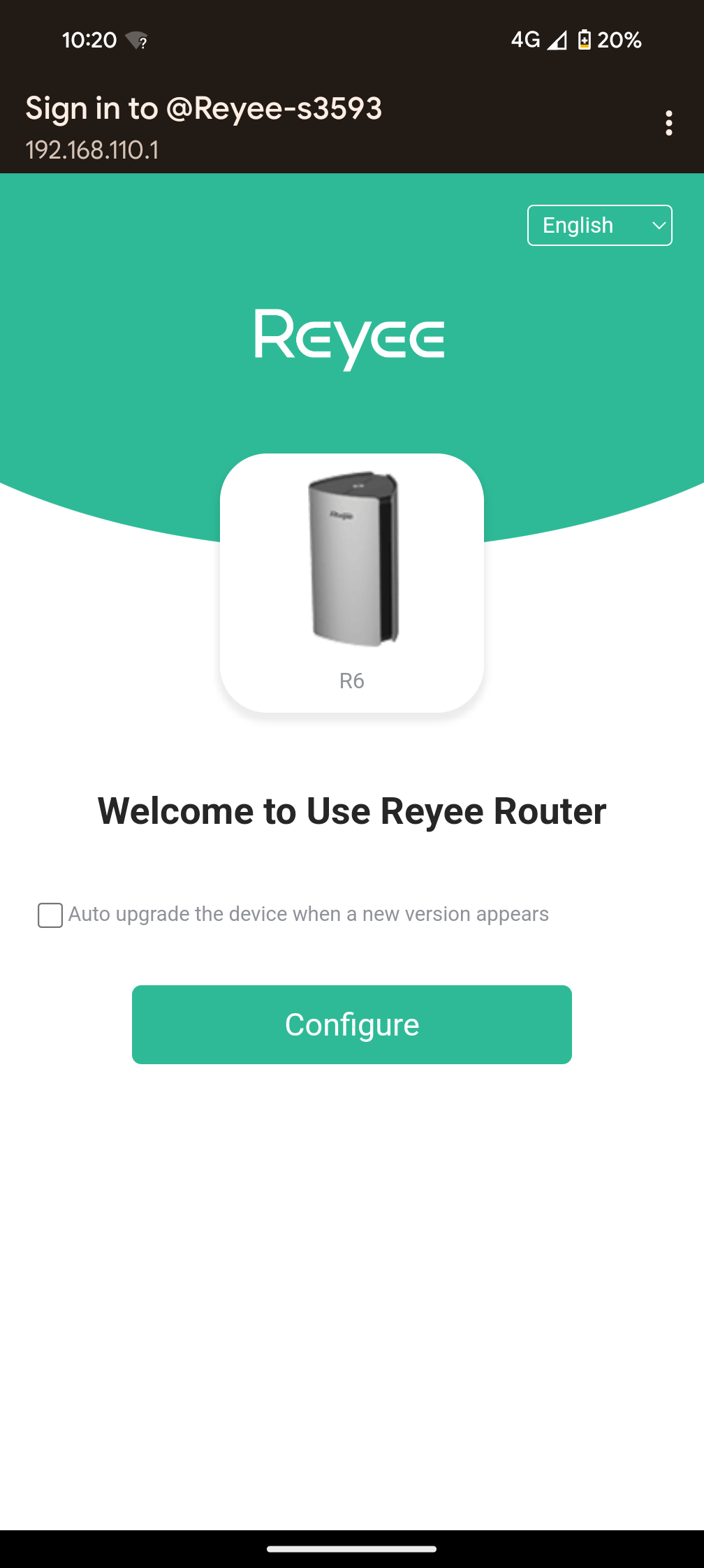

Click on the Ruijie network to join it.  Your device might ask you to sign in to the network.  You can proceed with this.  If it doesn't open a webpage similar to the below.   You can go to 192.168.110.1 on your phones browser to open the welcome page.

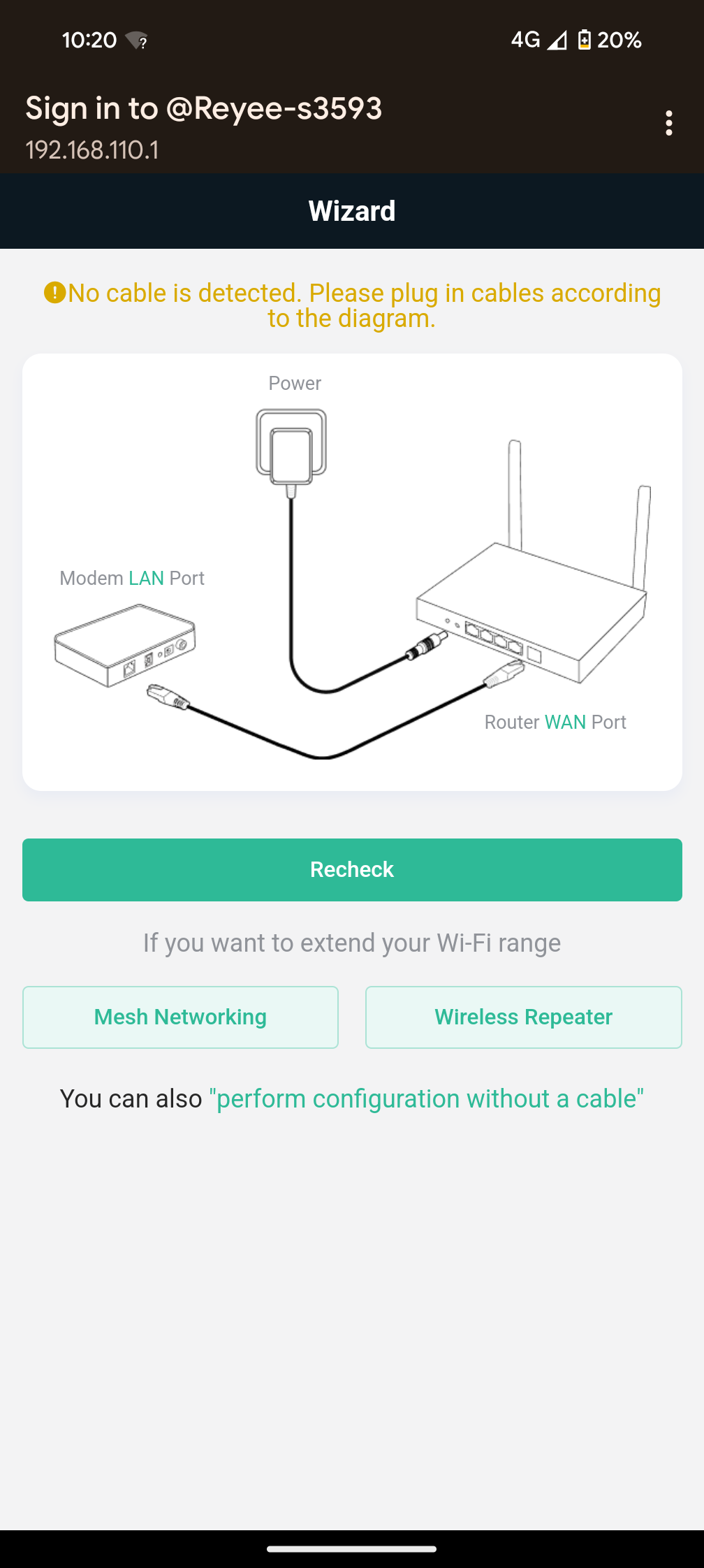

Next, click on Configure.  Ensure that your mesh router isn't connected with a network cable to anything.  It should be free-standing.  This will give you a screen as per below:

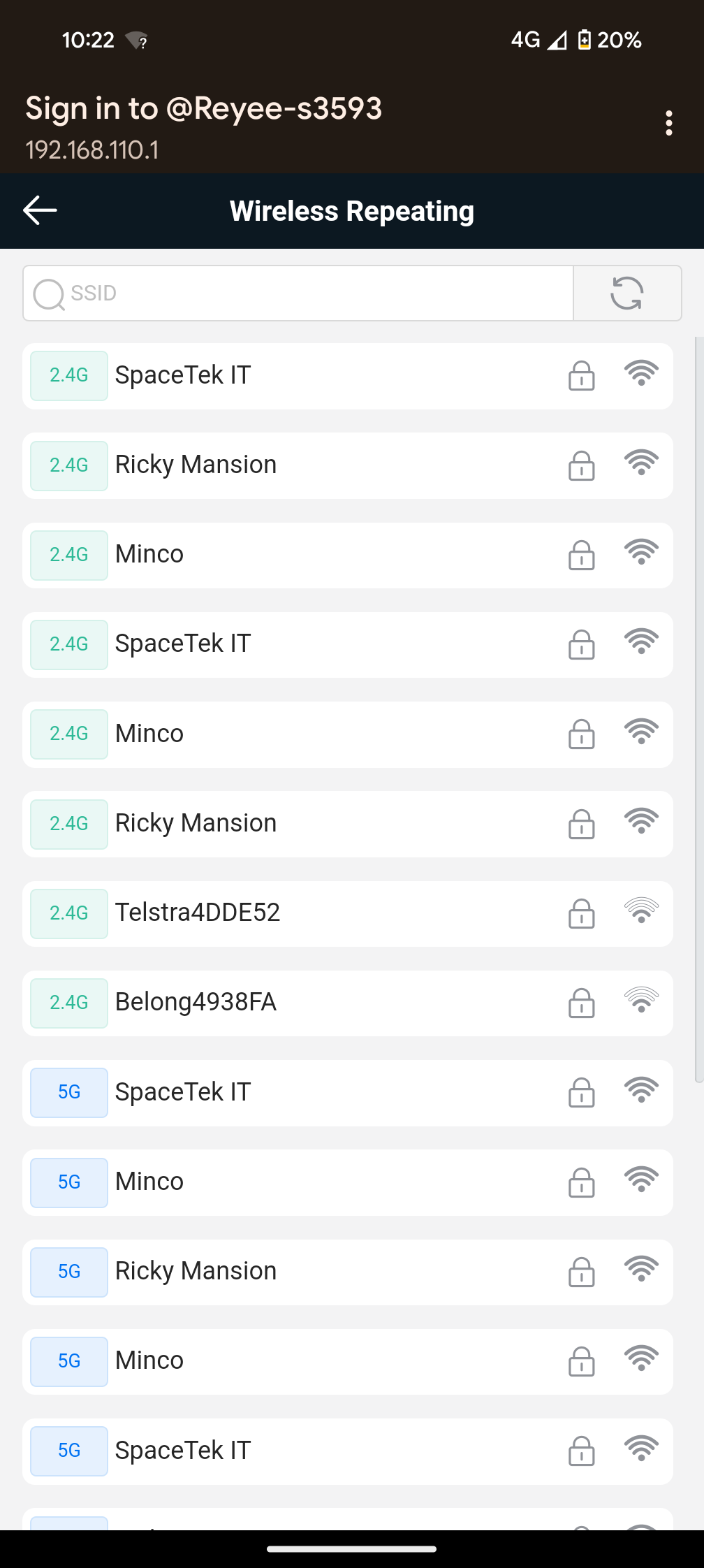

Click on the 'Wireless Repeater' option.  Once done, it will show up a list of wifi networks available in your network as per below:

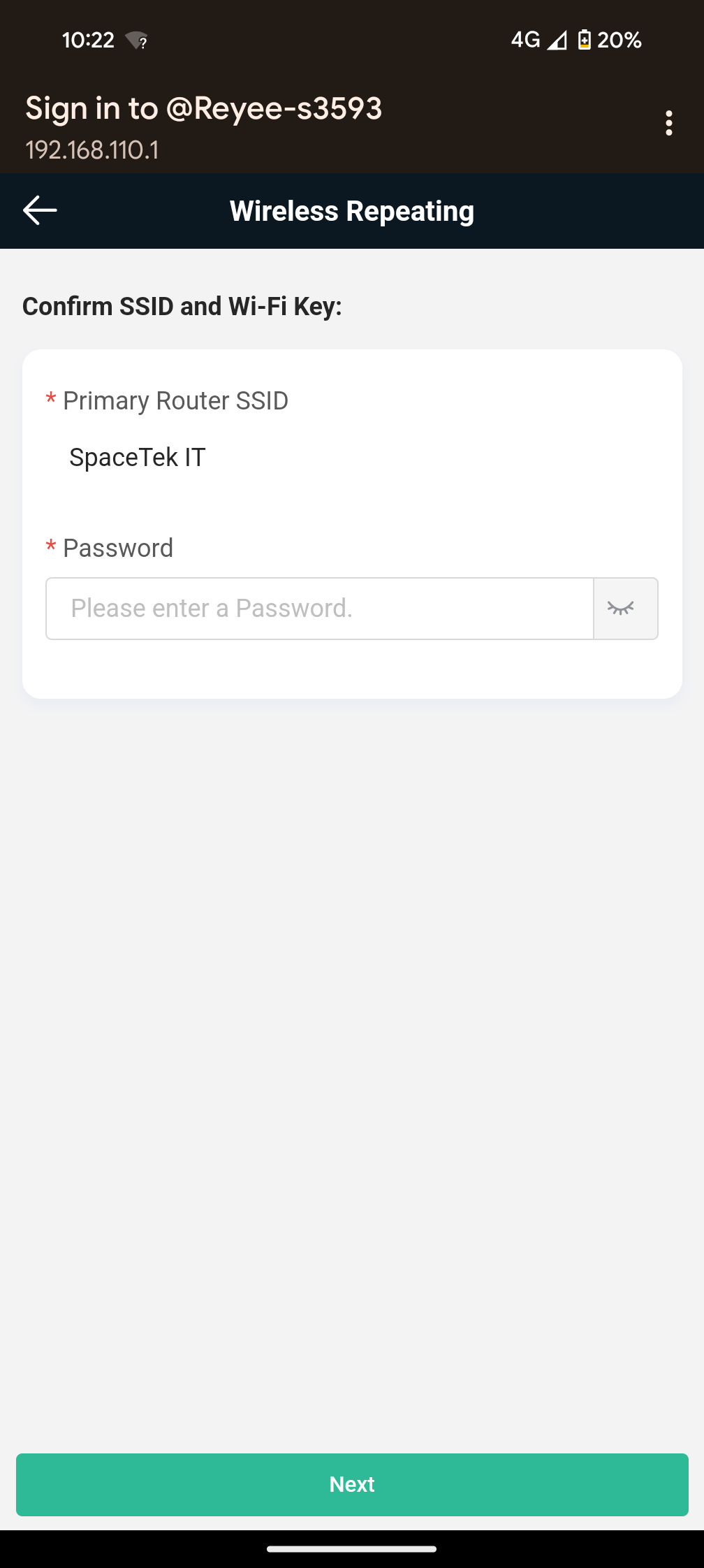

Choose your home network out of the above by clicking on it.   On the next page fill in your password for your current wifi network as below and once done click on 'Next':

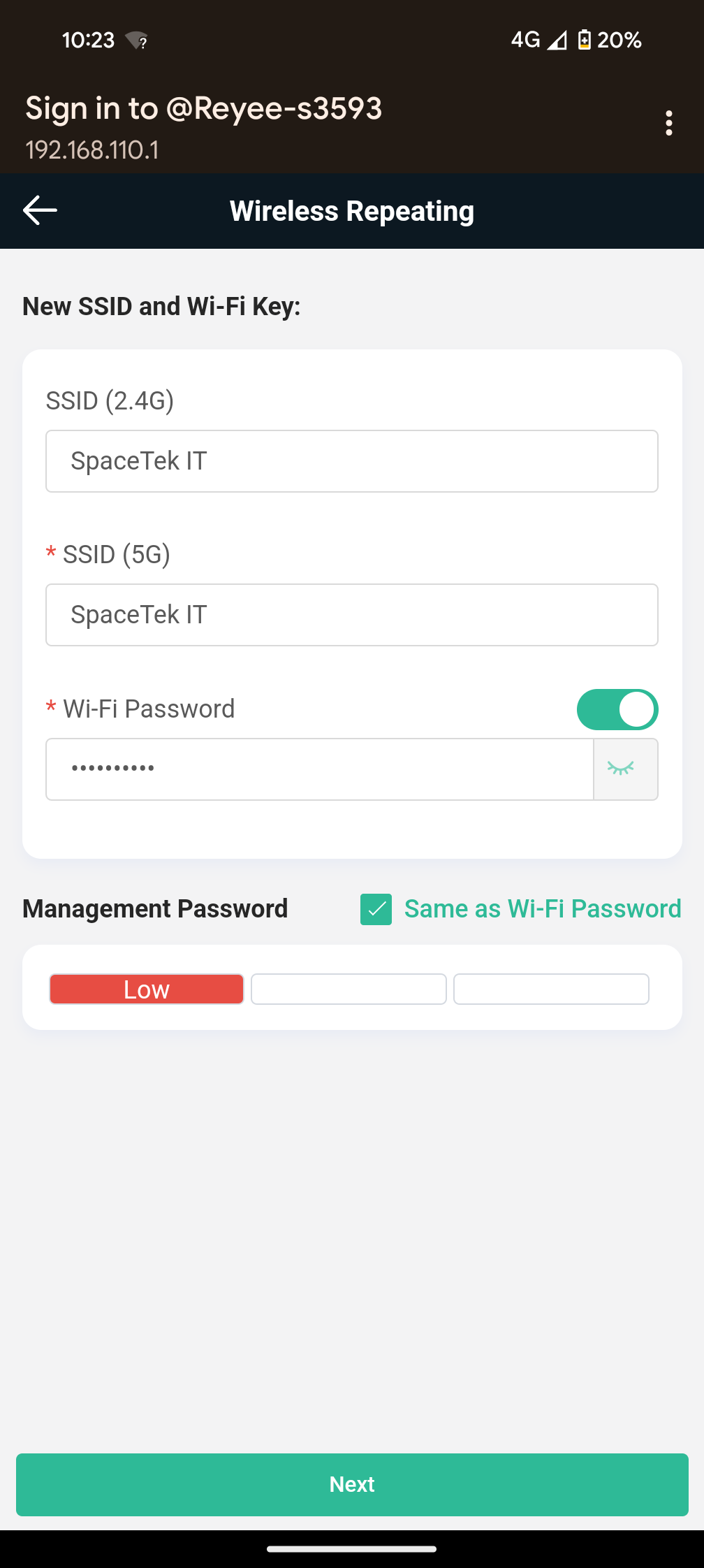

Now you can rename the SSID to the name of your network.  If there is a _24g or _5g, just remove this and rename it exactly the same Wifi name as your network currently.  Once done click next.



Once done, it should connect your mesh device to the your existing wireless network and start boosting out the signal.   You will have confirmation on the next page as below:



Repeat this on each mesh device above to complete the wireless boosting / repeating.

If you have any questions on this, or need assistance, do ring us on 03 5024 1222 or email us at info@spacetek.com.au
